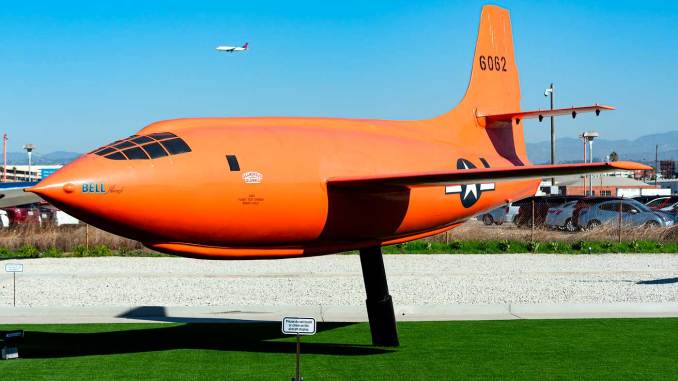

Why did the Bell X-1 adopt the shape of a .50 caliber bullet? A look back at a decisive aerodynamic innovation for transonic stability and the supersonic era.
Summary
In the late 1940s, the Bell X-1 broke the sound barrier thanks to a series of design choices that were unprecedented in aviation: a fuselage modeled on a .50 caliber bullet, very thin straight wings, and a monobloc stabilizer that could be adjusted in flight. This geometry was intended to overcome the effects of compressibility near Mach 1, when the center of thrust shifts and transonic shocks can “lock up” the control surfaces. The Bell-NACA team took up the ballistic analogy: 12.7 mm Browning projectiles are stable beyond Mach 1, hence the idea of a “bullet with wings” fuselage. On October 14, 1947, Chuck Yeager reached Mach 1.06 (≈ 1,127 km/h) at around 13,000 m. Beyond the feat itself, the data collected established lasting standards: “all-moving” tailplanes, control surfaces resistant to shock flutter, and careful dimensioning of profiles and thicknesses. Although the area rule would later become established, the X-1 provided the first practical manual on transonic stability.
The gamble of a “bullet” to cross the transonic barrier
At Mach ≈ 0.8–1.2, compressibility disrupts aerodynamics: shocks appear, the center of lift shifts backward, pitch torque (“Mach tuck”) occurs, and drag increases sharply. Engineers then sought a shape that would delay and “smooth out” these phenomena. The .50 bullet shape has an ogival nose and progressively tapered sections, known to remain stable at high speeds. Transposed to the X-1, this circular, slender geometry offers two advantages: it limits the local increase in Mach number along the fuselage and maintains a more predictable distribution of lift and pressure when shocks form. It reduces sensitivity to variations in angle of attack near Mach 1 and avoids the “jumps” in pitch moment that made conventional aircraft difficult to fly in this regime. The wings, which are straight and very thin, minimize relative thickness and therefore tip pressure, which delays the shock on the upper surface.
The shock mechanism: why the “bullet” stabilizes
In transonic flight, pockets of supersonic flow are created in areas of high acceleration (nose, leading edges, underside near the wing-fuselage junction), followed by a recompression shock. Each shock wave causes a pressure discontinuity; if it hits a control surface, it can neutralize or reverse the control authority. An ogival shape and gradual tapering reduce the curvature of the flow line, and therefore the pressure gradients, and “spread out” the formation of shock waves. On the X-1, the limited frontal area and rear taper reduce wave drag when crossing Mach 1. The result is fewer lift “jumps” and smoother longitudinal stability when approaching the sound barrier. The ballistic analogy is not perfect (a projectile is stabilized by its rotation, an aircraft by its tail surfaces), but the basic principle—controlling the acceleration of the flow—proves to be transferable.
The monobloc stabilizer: the other key to success
Even with good geometry, the conventional elevator can be “masked” by a shock at Mach ≈ 0.95–1.02. The X-1’s response is structural: a monobloc stabilizer (all-moving tail) whose angle of attack varies in flight, supplemented by an elevator for fine control. This choice is based on NACA recommendations: make the tail thinner than the wing, place it outside the disturbed wake, and allow the pilot to “move” the entire horizontal plane to regain control when the elevator loses its effectiveness. In practice, when approaching Mach 1, the pilot commands a few degrees of stabilizer incidence, restores the pitch margin, and crosses the critical zone without dangerous oscillation. This architecture would become standard for supersonic fighters, from the early F-86s to the F-16, as it made transonic flight much safer.
Overall design and reference figures
The X-1 is a single-seat rocket. It is approximately 9.45 m long, with a wingspan of 8.5 m, an empty weight of around 2.8 t, and very thin straight wings. Propulsion is provided by a four-chamber XLR11 rocket, burning liquid oxygen and alcohol-water, for a combined thrust of around 27 kN. The aircraft is dropped from a B-29/B-50 at altitude, fires a variable number of chambers to control acceleration, and shuts down before gliding and landing. On October 14, 1947, Mach 1.06 is reached at around 13,000 m. Beyond the first flights, the line evolved: the X-1A pushed up to Mach 2.44, exploring “inertial coupling,” while the X-1E received an even thinner wing to further investigate the physics of shocks and heating. Each variant served the same purpose: to map stability, loads, and pitch control in detail at and beyond Mach 1.
The legacy of transonic stability
Two major lessons permeate aeronautics: first, fully mobile tailplanes are the robust solution for maintaining control when breaking the sound barrier; second, the distribution of thickness is as important as the thickness itself. Subsequent fighter aircraft refined their profiles and control surfaces, moved antennas and protrusions out of gradient zones, and designed their control mechanisms (hydraulic assistance, flight control laws) to anticipate the onset of shock conditions. Methodologically, the X-1’s “flight research” approach—small steps, altitude corridors, multiple pressure sensors, telemetry—became the standard for supersonic programs.
The limits of the “bullet” metaphor and the rise of the area rule
The .50 bullet shape opened the door to supersonic flight, but it does not optimize drag at high speeds when the wing, fuselage, and tail are combined. By the mid-1950s, the area rule showed that the variation in total cross-section (fuselage + wings + tailplanes) had to be smoothed along the longitudinal axis. This led to the development of “coke-bottle” fuselage shapes and wing configurations that avoid a surface jump at the wing-fuselage junction. Swept wings also became the norm: with the normal velocity component at the leading edge reduced, the effective Mach number on the wing decreases, which delays the formation of shocks. In contrast, the X-1, which was straight and very thin, remained penalized above Mach ≈ 1.2; this was accepted because its role was to explore, not to carry a payload.
The impact on control surfaces and flight controls
The X-1 tests revealed specific thresholds: the onset of buffeting, partial loss of elevator control, and increased stick forces. The industry came up with three responses: increasing the torsional rigidity of the control surfaces to delay shock flutter, moving the hinges and compensators to keep human forces acceptable, and introducing hydraulic and then electric assistance. In the era of fly-by-wire controls, these lessons remain valid: flight control laws filter out sudden inputs near Mach 1, manage stability margins, and adapt authority based on sensors and shock parameters, exactly what the X-1 checklists already validated… without real-time calculations.
The operational legacy: from science to industry standard
The “bullet plane” produced concrete metrics: critical shock appearance speeds, centering margins, incidence and control force limits, and structural heating. Subsequent programs (fighters, bombers, interceptors) reduced their margins of uncertainty, and therefore the costs and risks of testing. Movable tailplanes became the norm on supersonic aircraft, from swept-wing interceptors to delta wings, and the design of profiles moved away from abrupt thickness transitions. This made transonic stability predictable, allowing for more daring architectures (ventral air intakes, flush sensor-fuselage connections, shock-spaced antennas).
What the X-1 still tells us today
The innovation of the X-1 reminds us that a breakthrough is as much about geometric intuition as it is about measurement. Envisioning a fuselage as a .50 caliber bullet shape did not render testing unnecessary; it provided a robust hypothesis that was validated and calibrated by flight tests. In an era dominated by digital simulation, the X-1 remains a useful reminder that when the laws of physics change, we must “close the loop” with instrumented flights. Modern aviation no longer faces the unknown of Mach 1, but other “walls”—aerodynamic-propulsion interactions at very high Mach numbers, thermo-structural couplings of materials, and the integration of sensors into thin skins. The lesson remains: pay attention to thickness distribution, preserve the authority of the control surfaces at critical speeds, and accept structural responses (fully mobile tailplane) when aerodynamics alone are no longer sufficient.
