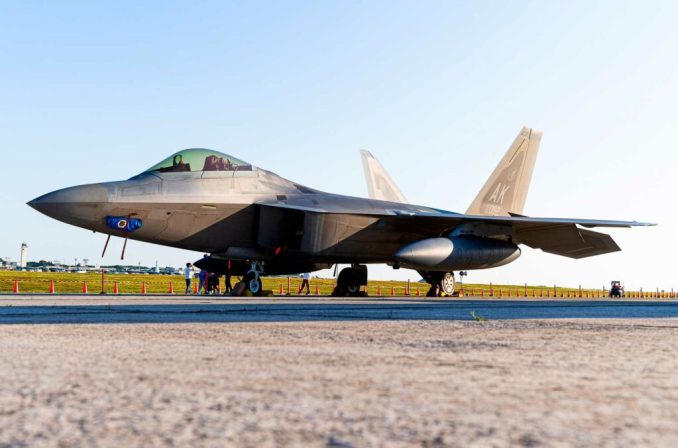

The F-22 Raptor was designed to reduce pilot cognitive workload through head-up displays, multifunction screens, HOTAS controls, and data fusion.
In summary
The F-22 Raptor has brought fighter aviation into a pilot-centered mindset. Its cockpit collects, prioritizes, and formats information from the AN/APG-77 AESA radar, electronic warfare sensors, IFF, and inertial/GNSS navigation. The principle is simple: provide the pilot with a unified and reliable tactical picture, reducing the time spent looking down and the cognitive load in combat. The ergonomics combine a head-up display, three color multifunction screens and HOTAS controls, with display rules that filter out the superfluous and highlight threats or firing opportunities. This architecture, coupled with stealth and supercruise (Mach 1.5 without afterburner), shortens the observation-decision-action loop and improves the success rate beyond visual range. This standard has inspired 5th generation cockpits (F-35) and major upgrades to 4.5 generation aircraft (Rafale F4, Gripen E, Eurofighter P4E), where data fusion and pilot-centric ergonomics are becoming the operational norm.
A cockpit designed for cognitive load
The heart of the F-22 is the control of the pilot’s attention. The airframe is optimized to limit visual distractions, while the dashboard focuses on a synthetic presentation of threats and contacts. The wide-field head-up display shows essential parameters (speed, altitude, targeting vectors, weapon status) in the pilot’s line of sight. Three color multifunction displays provide dedicated pages (tactical table, weapons management, electronic warfare, navigation) with levels of information graded according to the mission phase. The HOTAS (Hands On Throttle And Stick) controls reduce the number of gestures required: the pilot can activate a radar mode, manipulate a track or assign a jamming priority without leaving the controls. The ergonomics are designed to limit context switching. The pilot’s eye remains outside for flight and inside for decision-making, without having to manually “compose” the layers of information. This integration contrasts with previous generations, where each sensor (radar, RWR, IFF) had its own screen, symbology, and filters. The result: less scanning time, fewer correlation errors, and more cognitive availability for maneuvering.
A display and controls that prioritize the essentials
The interface logic is based on prioritization rather than accumulation. The tactical situation display aggregates tracks into a single view, with color coding and standardized symbols for identification (friend/foe/unknown) and tracking quality. Alerts are no longer simple audible alarms, but contextualized events: the EW page does not simply indicate a transmitter, it displays an estimated location, a threat class, and suggests a course of action (avoidance, decoy, jamming). The symbology evolves according to distance and angle, in order to avoid overload on the tactical map. HOTAS controls trigger “composite actions”: for example, switching from long-range search mode to intermittent illumination to maintain stealth, then launching an AMRAAM solution with automatic selection of the best weapon based on target kinematics. This level of automation does not detract from human authority: it proposes and prepares, the pilot validates. The direct effect is measurable in flight: shorter decision cycles, cleaner trajectories, better emission discipline.
Real-time data fusion
The qualitative leap is due to data fusion. The F-22 combines measurements from the AN/APG-77 (low probability of interception AESA radar), passive electronic warfare sensors (emission detection, geolocation), IFF, and inertial/GNSS navigation. Data association algorithms merge heterogeneous “fragments” into a single track, with a confidence score. The machine filters out noise, removes duplicates, reconciles a radar track with an enemy radar emission, and then stabilizes the estimated trajectory. The avionics bus and redundant computers ensure very low latencies, in the order of tens of milliseconds, which is essential for a “live” and reliable display. This fusion is not only internal. Between Raptors, the IFDL (Intra-Flight Data Link) shares high-quality tracks without compromising discretion, while Link 16, used sparingly, provides coalition interoperability. On a tactical level, this allows for the orchestration of cooperative engagements: a silent F-22 can provide the firing track, a wingman can trigger the salvo, and a third can coordinate self-protection. The aircraft becomes a node of air superiority, rather than an isolated sensor.
A direct effect on the pilot and performance
The reduction in cognitive load translates into concrete gains. Less “mode hunting,” more decision-making. Pilots report shorter cockpit scans, more frequent glances outside, and greater awareness of “off-axis” threats thanks to the graphical stabilization of tracks. In beyond visual range combat, data fusion enables a credible “first look, first shot, first kill”: the track is detected earlier, better qualified, and kept in memory in case of temporary masking. In close combat, flight laws and vector thrust help maintain the angle solution, while the interface continues to filter useful information (missile status, distance, energy situation). Supercruise (approximately Mach 1.5, or nearly 1,600 km/h without afterburners) maintains the kinematic advantage without excessive thermal signature, leaving more room for decision-making and combat exit. The combination of these human and kinematic gains explains the F-22’s continuing tactical advantage despite its limited numbers.
Technical operation and safeguards
Behind the screen, the architecture is designed for safety. Mission computers operate in redundancy, with software partitions separating critical functions (flight controls) from tactical functions (sensors, links). High-speed data buses, often fiber optic, limit latency and isolate failures. Display rules obey priorities: a critical alert “preempts” the current page, but the system logs the event for debriefing. Fusion algorithms are configured to avoid “overconfidence”: if a track is too uncertain, it is not promoted to engageable status. This caution prevents unjustified firing and protects stealth (minimal radar emissions). Cybersecurity prevents the injection of phantom tracks via data links. Finally, predictive maintenance, fed by sensor feedback, anticipates failures and reduces downtime, resulting in increased operational availability and lower cost per flight hour.
Measurable operational consequences
Ergonomics and data fusion are changing the way the aircraft is used. In a “barrier” posture, two Raptors cover a strip of hundreds of kilometers, share their tracks, and divide up roles (penetrating sensor, shooter, EW cover). In offensive counter air, the attack is carried out discreetly, with radar emissions reduced to the bare minimum, and tactical pictures consolidated by the IFDL and passive sensors. In close air support, the tactical table integrates data from friendly forces on the ground (coordinates, laser spot), reducing the risk of friendly fire and speeding up the support loop. When facing opponents equipped with modern radars, the AESA can modulate its beam to remain below the detection threshold while maintaining stable tracking. Combined with supercruise, this combination allows the location and timing of the engagement to be chosen, a decisive operational advantage.
Lessons for other fighter aircraft
The F-22 set a standard. The F-35 extended this logic with a large panoramic display, a helmet-mounted display, and even more advanced data fusion, integrating IRST and distributed sensors. The 4.5th generations have converged: the Rafale F4 relies on RBE2 AESA-SPECTRA-OSF integration and unified tactical pages; the Gripen E adopts a large “Wide Area Display” and an open architecture; the Eurofighter is evolving towards fusion increments and new data links. The lessons are clear: priority must be given to information sorting, symbolic consistency, and “assisted” automation (AI proposes, humans decide). At the program level, open architecture facilitates the addition of new sensors or weapons without recertifying the entire aircraft. Finally, emission discipline and “silent kill chain” cooperation are becoming both human and technical skills.
Limitations and developments to anticipate
Every system has its constraints. The F-22 was born with interfaces and software laws from a generation prior to panoramic cockpits; the integration of a helmet-mounted display and new links remains gradual and constrained by the need to preserve stealth. The increase in the volume of information raises the question of the next step: more intrusive algorithmic assistants? Adaptive filtering by context? Allied fleets will also have to manage interoperability: sharing without exposing themselves, combining different generations of AESA radars and heterogeneous electronic warfare libraries. The other challenge is human: training crews capable of exploiting a unified tactical situation without losing their critical thinking skills when faced with misleading clues. Experience from exercises shows that the F-22’s superiority is as much about doctrine and training as it is about technology. The future belongs to crews who can maintain the initiative in a data-saturated sky.
